82 diesel Vanagon with a 1.9 1Y engine that dropped an exhaust valve:
 |
| Exh. valve dropped out and speared the piston. |
 |
| Exhaust valve sticking out of piston |
 |
Exhaust valve sticking out of piston
|
|
 |
| Another angle for perspective. |
 |
| Pistons pulled and cylinders bored. |
 |
| #4 still had some minor pitting after honing. |
 |

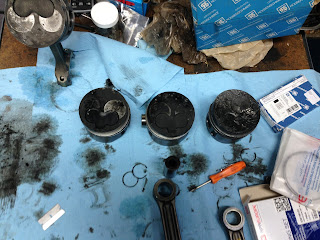

3 of 4 pistons were damaged and not reusable, as well as the #4 rod.
|
|
Another 82 diesel Vanagon 1.6TD with engine trouble:
 |

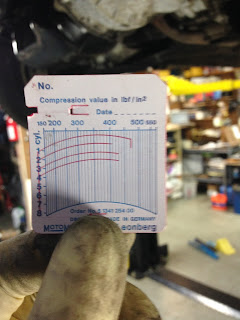

| Compression #s on the edge of trouble |
81 Rabbit rehabilitation and 1.9 1Y eng swap:
 |
| Completed project ready for pickup. |
 |
| Pic of eng bay. Customer had dyed off-road diesel in the fuel tank :-/ |
 |
| 1.6 upper timing belt cover had a rub point with the 1.9 timing belt. |
 |

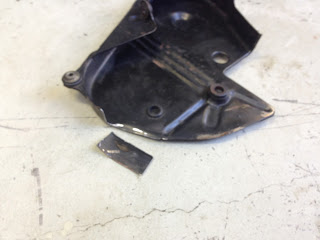

| Cut out portion of the cover that was interferring. |
 |
Interference section
|
